Spot Welding

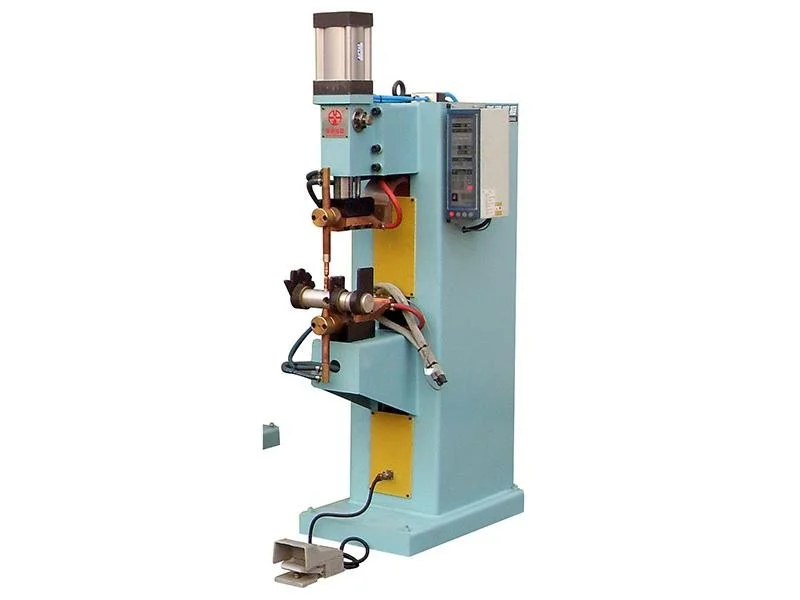

AC Spot Welding

AC spot welding offers a practical, proven solution for standard spot welding applications through delivering dependable weld performance, simple operation, and strong value for everyday production needs.

DN-40

40 kVA power

4 kN capacity

80 mm vertical stroke

400 mm throat depth

DN-100

100 kVA power

6 kN capacity

80 mm vertical stroke

500 mm throat depth

DN-160

160 kVA power

10 kN capacity

100 mm vertical stroke

500 mm throat depth

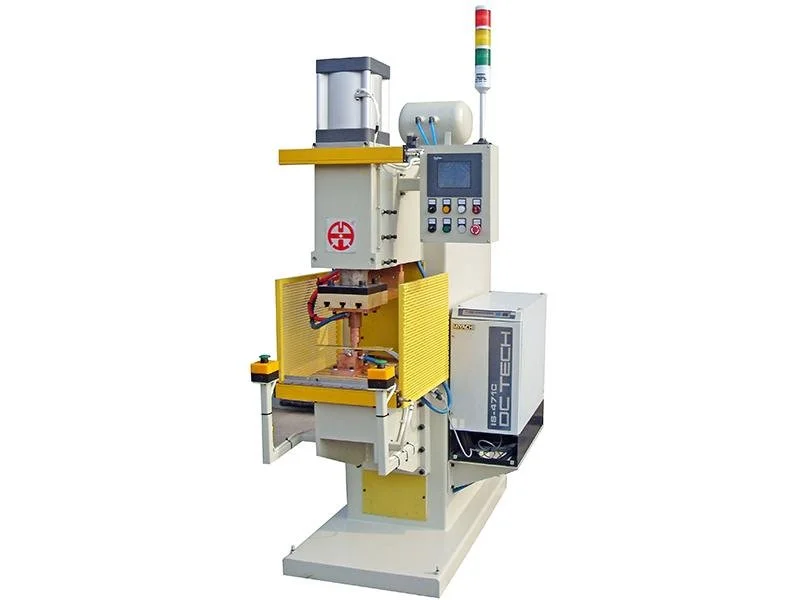

DC Mid-Frequency Spot Welding

DC mid-frequency spot welders are a high-performance solution for applications that require tighter process control, robotic integration, or demanding production requirements.

DZM-90

90 kVA power

10 kN capacity

80 mm vertical stroke

500mm throat depth

DZM-130

130kVA power

10 kN capacity

100 mm vertical stroke

500 mm throat depth

DZM-170

170 kVA power

15 kN capacity

120 mm vertical stroke

500 mm throat depth

FAQ

  • AC spot welding is a proven, cost-effective choice for standard sheet metal welding. DC Mid-Frequency spot welding provides more controlled current delivery and is often selected for demanding production, automation, or robotic applications.

  • Machine size depends on material type, sheet thickness, weld size, weld count, part geometry, throat depth, stroke, production rate, and required weld quality.

    We will be glad to help you choose the right machines for your needs— please use the form below to inquire for up-to-date quoting.

  • Power is the welder’s ability to deliver electrical energy to the weld. More current produces more heat at the weld interface, so higher power supports thicker or more conductive materials when paired with the right force and timing.

    Capacity describes the practical welding range of the machine, including the material type, thickness, current, and electrode force it can handle reliably.

    Throat depth is the horizontal distance from the electrodes back to the nearest machine obstruction, which determines how far into a part the machine can place a weld. A deeper throat allows for larger parts to be welded.

    Vertical stroke is the up and down travel of the welding head or ram as it opens, closes, and applies electrode force to the workpiece. More stroke gives more clearance for loading formed or taller parts, while adjustable or retractable stroke options help match the machine motion to the application.
