Struck Welding and Assembly Semi-Auto Line

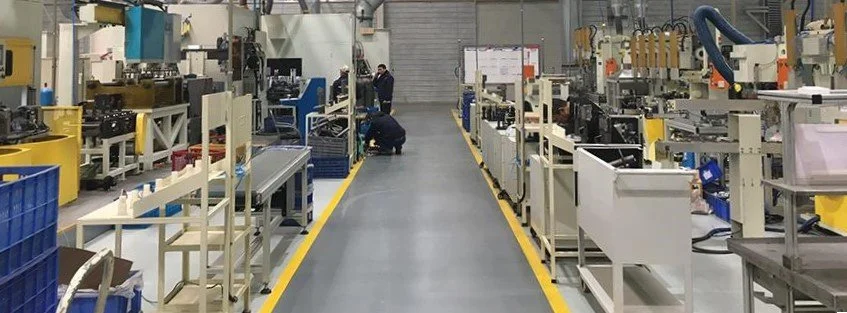

Industrial manufacturing facility with workstations, machinery, tools, and workers.

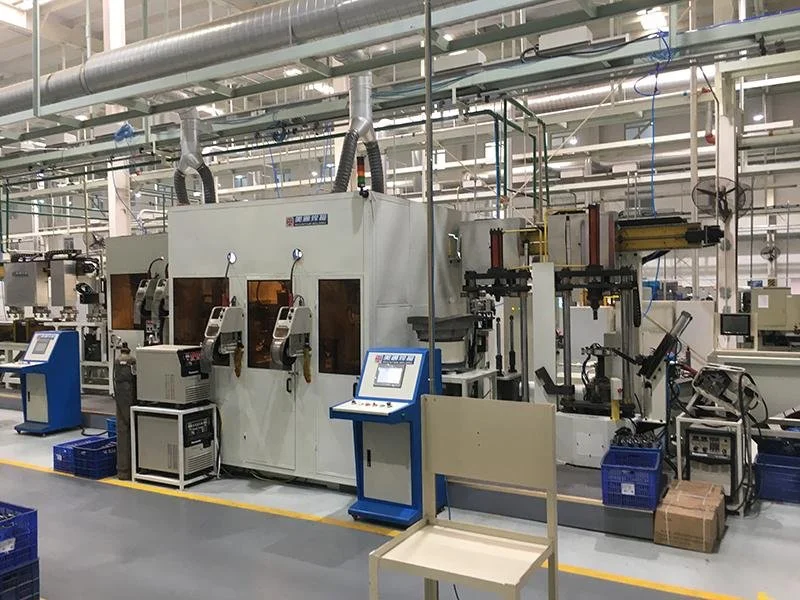

Factory manufacturing equipment with control panels and machinery in an industrial setting.

A). Welding Assembly Unit 1

Tube Auto Feeder

90° Turn Table

Hydraulic Press for Bracket Assembly

CO2 Spot Welding Machine (Single Torch)

Hydraulic Bottom Cap Assembly Press

End Cap Auto Feeder (Vibration Plate)

Load/Unload Robotic Arm (2 Workstation)

4 Workstation (Single Line into Dual Line)

End Cap Welding Machine (2x)

180° Turn Table

Upper Bracket Welding Machine (2x)

Conveyor

Load/Unload Robotic Arm (4 Workstation)

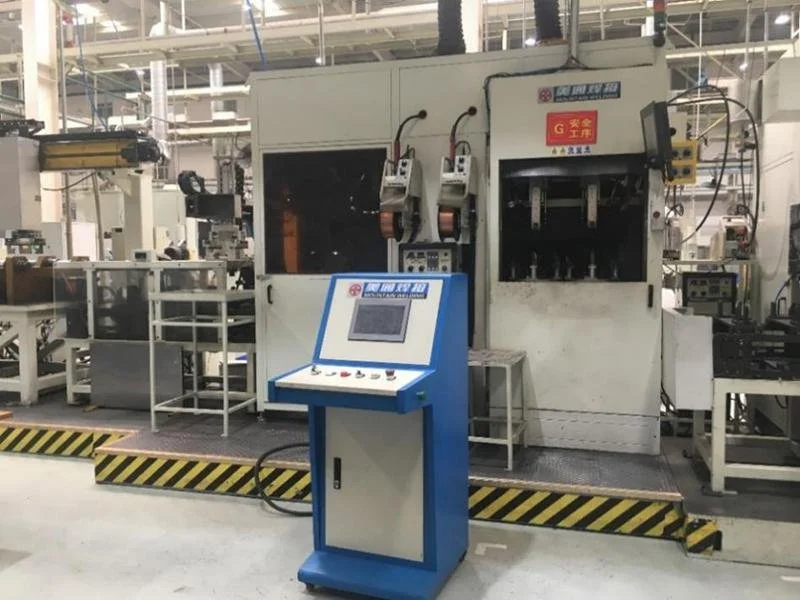

Industrial machinery in a manufacturing facility, including a blue control station with a digital screen, surrounded by other equipment and safety barriers.

B). Welding & Assembly Unit 2

Spring Plate Spot Welding

Spring Plate and Bracket Welding

Descaling Machine (Automatic)

Automatic Unload Robotic Arm for Spring Plate

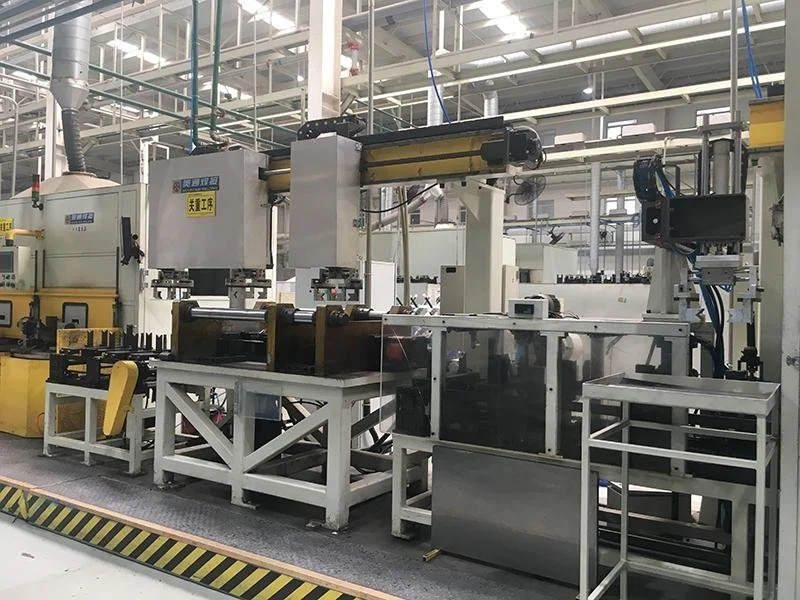

Industrial manufacturing machinery setup in a factory with metal workstations and conveyor components.

C). Fully Automatic Bracket Processing System

Descaling Machine (Automatic)

Workpiece Cooling System

Bracket Opening Inspection Before Shaping

Unload Robotic Arm for Unqualified Products

Conveying System

Bracket Shaping Machine

Dual Directional Punch Press for Bracket

Load and Unload Robotic Arm to Punch Press

Conveyor System

Large industrial machine with two circular sections used for metalworking or manufacturing, with control panel on top and safety barriers on the sides.

D). Robot Welding Workstation

Robotic Welding Machine with stabilized bar (2x)

Conveyor System

Industrial manufacturing factory with automated machines, robotic arms, and control screens.

E). Signal Bracket Welding and Cleaning System

Projection Welding for A, B lugs

Conveyor System

Dual workstation leakage test machine (liquid type)

Inspection Table

Shock Absorber Welding and Assembly Auto Line

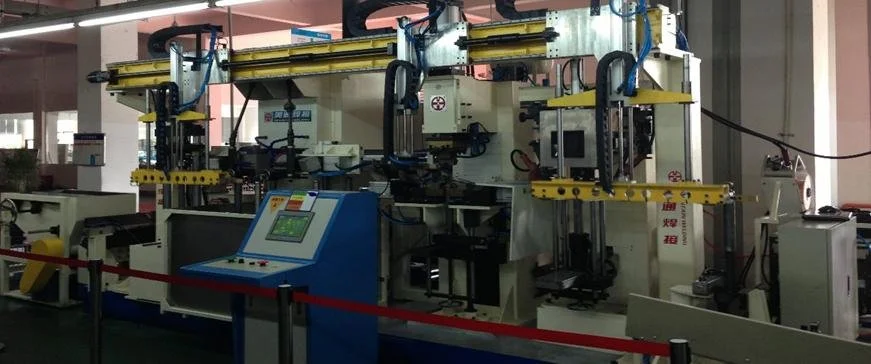

Industrial manufacturing machine with digital control panel in factory setting.

A). Signal Bracket Welding and Cleaning System

Servo beam transportation system

Robotic arm up & down moving system

Robotic Claw (5x)

Tube loading machine

End cap loading robotic arm

End cap assembly press

End cap seam welding machine

Lifting ring loading robotic arm

Lifting ring projection welding machine

End cap MIG welding machine

Leakage testing machine

Industrial manufacturing robots and machinery in a factory

Projection Welding

Spot Welding

Seam Welding

MAG Welding

Spin Closer

Hydraulic Press

Automatic Multi-Head Drilling Machine

Shock Absorber Welding and Assembly Machines

Projection Welding for Support & Lower Fixation

Projection Welding for Support & Lower Fixation

Industrial machine with control panel and mechanical arms used for manufacturing or assembly processes.

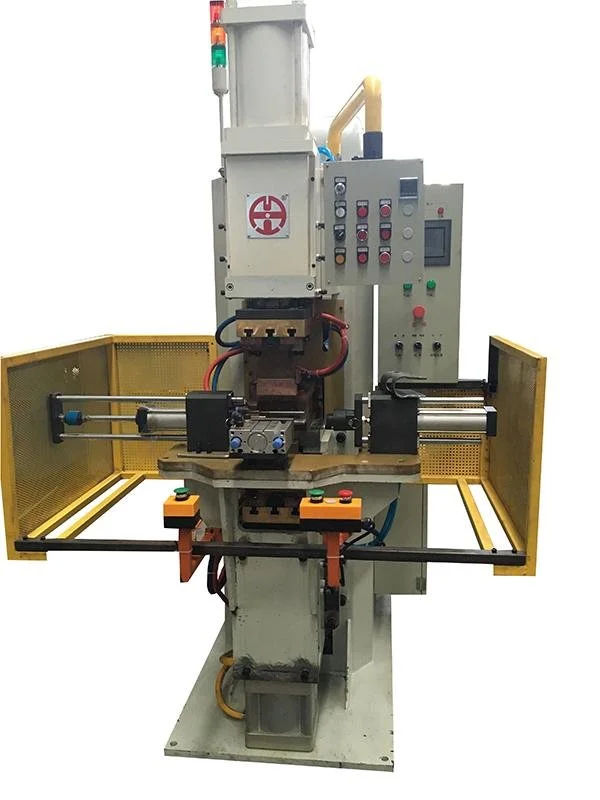

Projection Welding for Piston Rods, Lifting Rings, Rustproof Covers, and more

Industrial machine with control panel, yellow safety guards, and various components used for manufacturing or processing.

Projection Welding for Fuel Tank Supporting Brackets

A mountain welding machine with control panel, hydraulic system, and welding components.

Horizontal Projection Welding for Piston Rods

A complex industrial machine with electronic controls and safety features, used for manufacturing or assembling components.

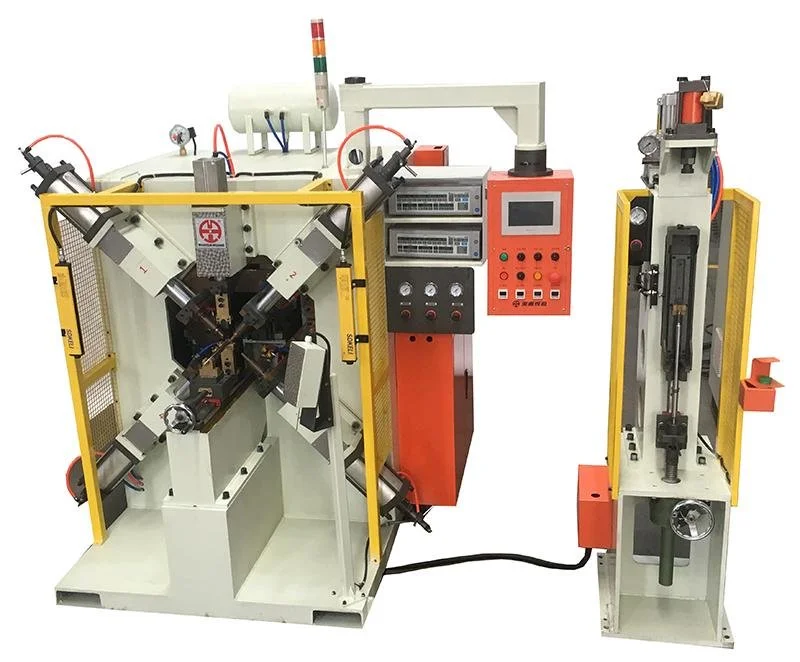

Spot Welding and Force Testing for Piston Rod and Spacing Ring

Industrial machine with robotic arms, control panels, and automated components used for manufacturing or assembling parts.

4-Spot Welding for Piston Rod, Spacing Ring

A mountain welding machine used for industrial welding processes, featuring control panel, robotic arms, and safety enclosure.

Seam Welding for Upper Weld

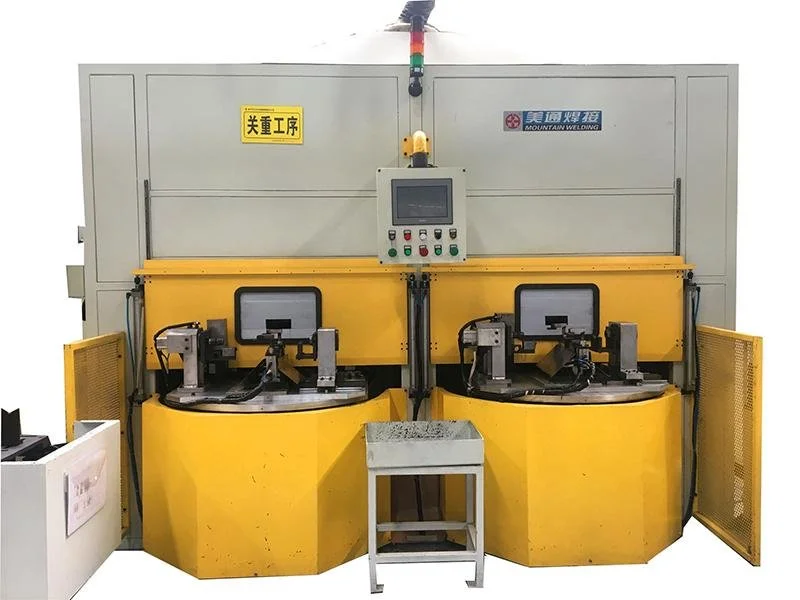

An industrial machine used for manufacturing or assembly processes, featuring two robotic arms, a control panel, and a large circular metal surface.

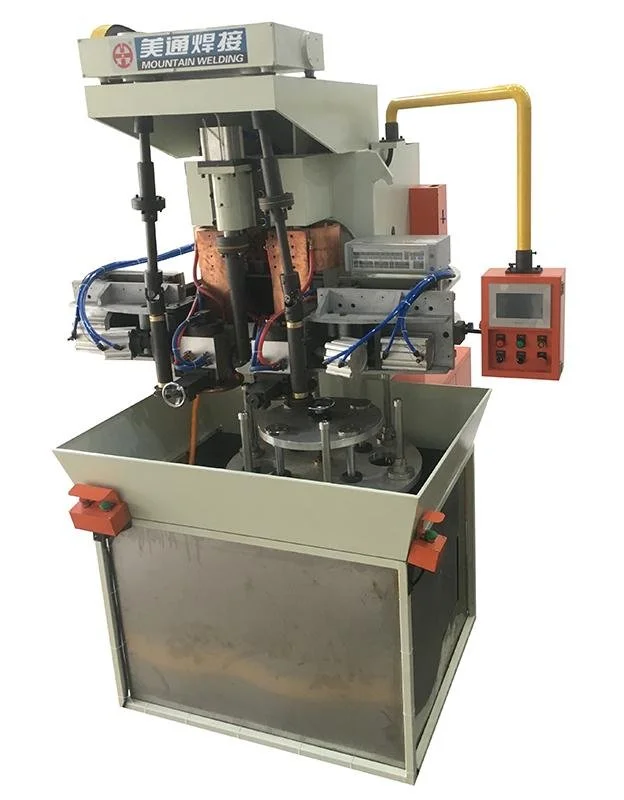

Semi Auto Upper Seam Welding Machine

A machine used for mountain welding, featuring multiple hydraulic arms, control panel, and a copper workpiece.

Semi Auto Lower Seam Welding Machine

Industrial mountain welding machine with control panel on the left and Chinese characters on a blue sign.

Two Torches MAG Welding Machine

Industrial machine with control panel and safety labels.

Single Torch MAG Welding Machine

Industrial mountain welding machine with control panel and warning light.

Gas Filling and Spin Closer for Strucks

Industrial machine with control panel, rollers, and safety guards used for manufacturing or assembly processes.

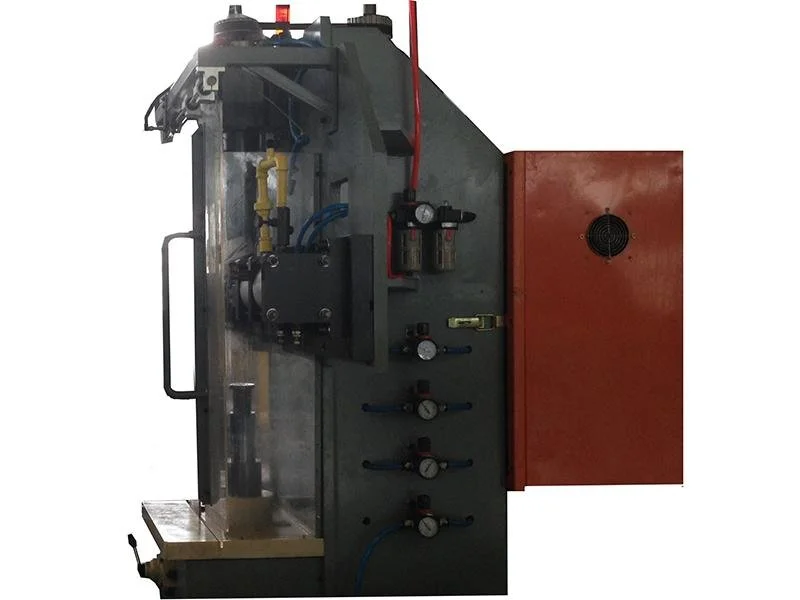

Spin Closer for Rear Shock Absorber

Industrial machinery with gauges, pipes, and control components, featuring a red panel and a grey metallic body.
Industrial machinery with yellow safety panels, control panels, and black and orange components, used for manufacturing or testing processes.

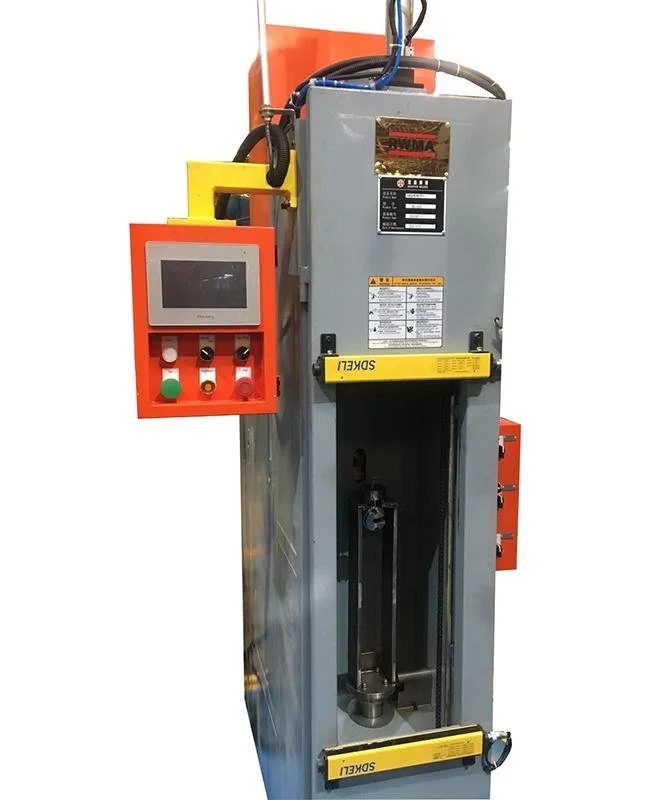

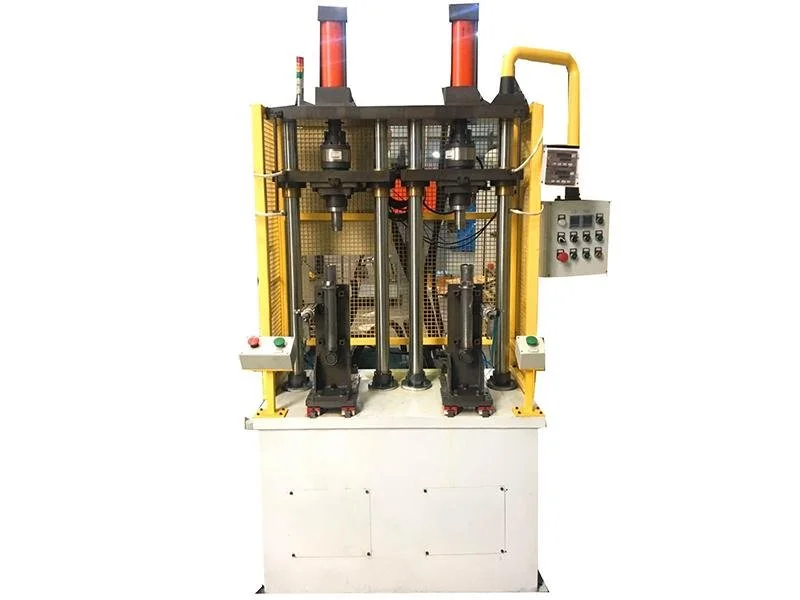

Assembly Press

Industrial machine with multiple pistons and control panel, equipped with safety barriers and red warning lights.

Tube Forming machine

Customer List

BYD
SACHS
ATL CO. LTD
SHOWA
WANXIANG Marili
SHANGHAI POWERED
ADD
Zhejiang Mingzhen
AL-KO Record
GRC
FOMAR CV BRAKES
Ningbo Kasico
Dong Fong ZF
Zhejiang Shenshen
Ningjiang Shcock
Yangzhou Focus
Zhejiang Roadtamer Auto Suspension System

industrial machinery with control panel and safety enclosure, used for manufacturing or processing tasks.

Automatic Multi-Head Drilling Machine

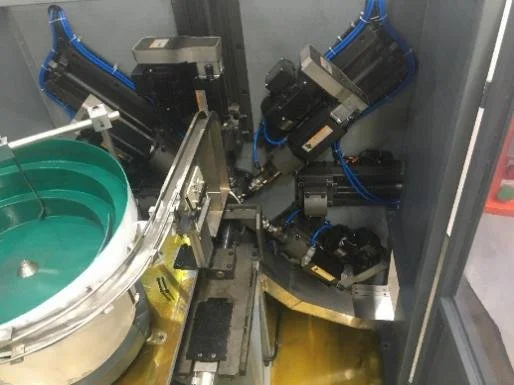

Multiple robotic arms inside a manufacturing or industrial machine, with a green circular component on the left.
